Choosing the Right 3D Printing Materials for Automotive Manufacturing


Auto materials

3D Printing Materials for Automotive

Additive manufacturing (AM) technology comes in multiple flavors, with certain technologies being a better fit for some auto applications than others. It’s a topic we cover in our companion Solution Guide “How to Choose the Right 3D Printing Technology for Automotive Manufacturing.” But once you’ve chosen the appropriate AM technology, it’s all about what materials 3D printers use.

And we’re here to say that polymer 3D printing offers a sweet spot for the automotive industry. That’s true for several reasons, because compared to metal 3D printing, polymer AM offers:

  • Fewer resource constraints (facilities, training, safety)
  • Greater accessibility and ease of use
  • Broad material capabilities and price points
  • Lightweight but strong options for applications where it can replace metal

With such a wide range of polymers – from thermoplastics to thermosets to photopolymers – how do you know which material to choose and the use cases where each is appropriate? That’s the challenge this Material Guide will clarify by highlighting the Stratasys AM technologies and materials suitable for each phase of automotive production, including product development, production support and part production.

Additive Manufacturing Materials for Product Development

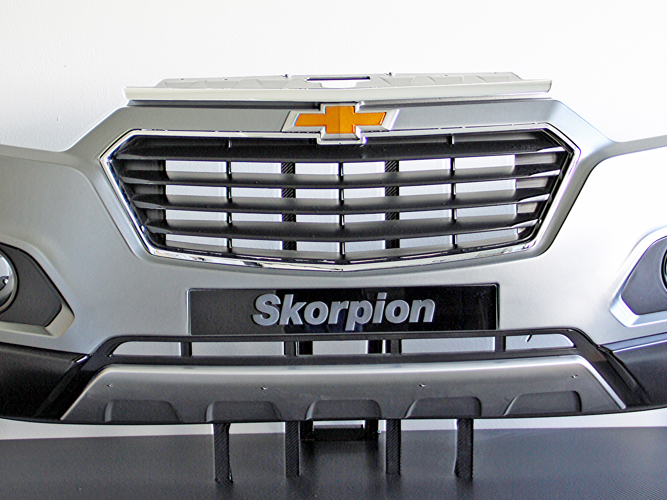

Product development includes creating mock-ups, models, and prototypes to develop, refine and validate design concepts. Additive manufacturing is beneficial at this stage for the automotive industry because AM technology makes parts without any support tooling, accelerating the design and ideation process.

AM materials best suited for this phase of automotive production include polymers with a broad color selection and texture capabilities, able to reproduce or mimic the look and feel of other materials.

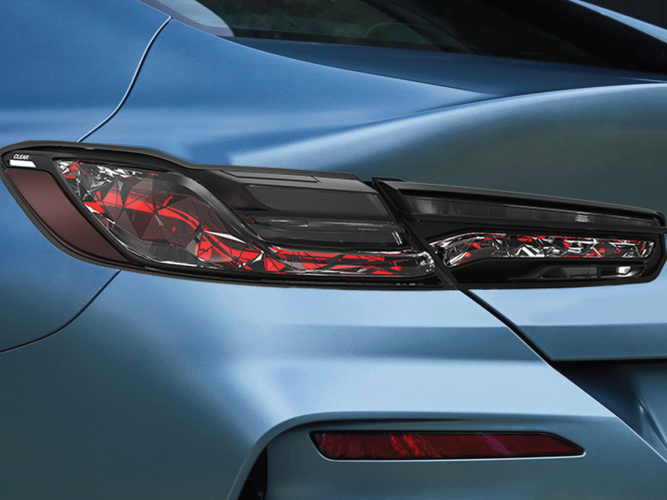

This makes them an optimal choice for concepts and prototypes that need to represent their finished configuration – particularly helpful for auto interiors, external molding and lighting. Other factors include easy printability, fine surface finish, and the ability to replicate other types of plastics like acrylic.



Additive Manufaturing Materials for Production Support

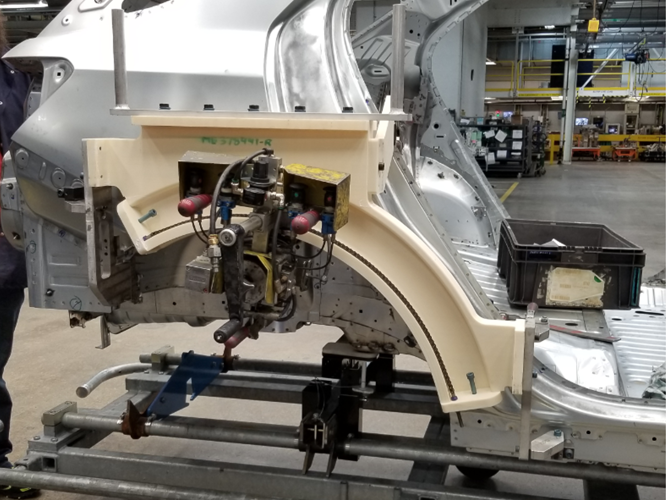

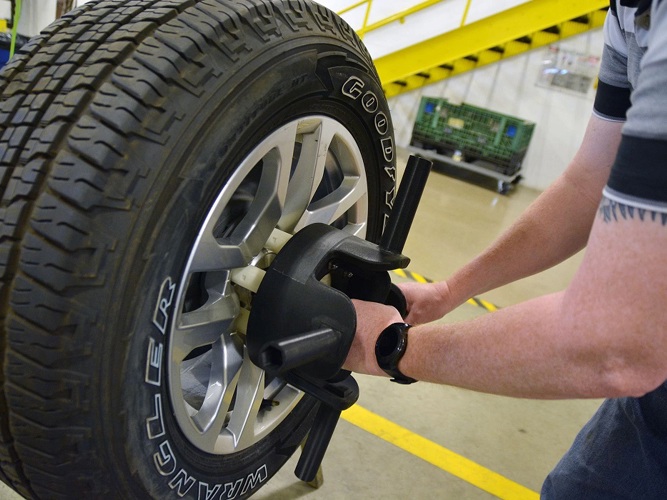

Production support comprises the tools and infrastructure to sustain the manufacturing process. 3D printing plays an important role, enabling more efficient ways to make and use tools across multiple departments and disciplines including R&D, assembly, quality control, health and safety, and others.

Additionally, 3D printing offers a fast, cost-effective solution for making surrogate parts. These parts stand in when the genuine parts are not yet available for tooling setup verification with new model-year production line changes. This can dramatically reduce the time for tooling validation and quickly identify where changes are needed, long before final parts and assemblies are available.

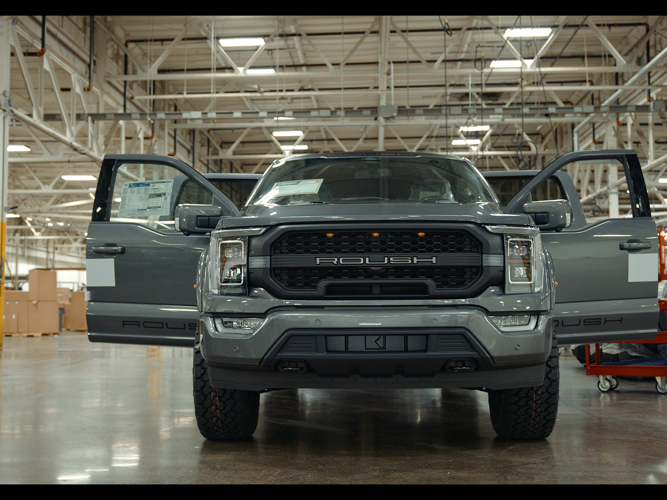

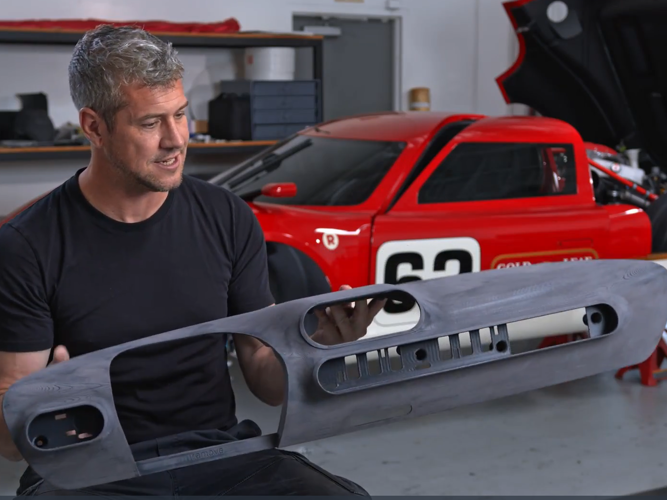

Additive Manufacturing Materials for Part Production & Spare Parts

Despite its origin as a rapid prototyping tool, 3D printing’s utility for automotive applications extends to the manufacture of end-use parts. Its benefit lies in overcoming limitations like manufacturability constraints or economic barriers due to production volume. Parts made with AM don’t require support tooling, bypassing a costly and time-consuming step in the production process.

With the other phases of auto production, the applications usually drive the best material choices. However, the process is a little different when producing end-use parts. That’s because your total part quantity plays a role in determining the best 3D printing technology to use – and that, in turn, controls your available material choices.

Choosing the Right 3D Printing Material for Automotive

When it comes to the additive manufacturing process, printer technology is important. But the right materials are the essential ingredients for success, and polymer 3D printing offers fertile ground to address many automotive applications. Polymers have the versatility to cover a wide range of use cases simply due to the scope of available materials.

In addition, they have the properties and the aesthetic qualities to tackle applications from prototyping a lens cover to making ventilation scoops for every car fielded in the NASCAR Cup Series.

車載用3Dプリンタ材料

アディティブ・マニュファクチャリング(AM)技術には様々な種類があり、自動車用途に適した技術とそうでないものがあります。これについては、関連ソリューションガイド「自動車製造に適した3Dプリンタ テクノロジーの選び方」で取り上げています。さらに、適切なAMテクノロジーを選択した後は、3Dプリンタでどのような材料を使用するかが重要なポイントになります。

自動車業界向けとして最適なテクノロジーと言えるのが、ポリマー3Dプリンティングです。それにはいくつかの理由があります。金属3Dプリンティングと比較して、ポリマーAMには以下の特長があります。

  • 使用する際の制約が少ない(施設、トレーニング、安全性)
  • 入手性や利用しやすさ、使いやすさが優れている
  • 幅広い対応材料と価格帯
  • 金属を置き換えることができる用途において、軽量でありながら強力なオプション

熱可塑性プラスチックから熱硬化性樹脂、フォトポリマーまで、非常に幅広いポリマーが存在している中、どの材料を選択し、適切な使用目的をどのように判断すればよいのでしょうか。この材料ガイドでは、製品開発、生産支援、部品生産など、自動車生産の各段階に適したストラタシスのAMテクノロジーと材料に焦点を当て、上記の課題について明確に説明しています。

競合他社に差をつけ、ストラタシスの自動車製造向け3Dプリンタ材料で自動車設計を加速させましょう。

製品開発のための積層造形材料

製品開発では、モックアップ、モデル、プロトタイプを作成し、デザインコンセプトの開発、改良、検証を行います。自動車製造のこの段階では、3Dプリンタを使用するメリットが大きいです。なぜなら、AM技術はサポート工具なしで部品を作り、設計やアイデア出しのプロセスを加速させるからです。

自動車生産のこの段階に最適なAM材料として、ポリマーがあります。ポリマーは、幅広い色とテクスチャ機能から選ぶことができ、他の材料の外観や感触を再現したり模倣したりすることができます。

そのため、自動車の内装や外装、照明など、完成時の形状を表現する必要があるコンセプトモデルやプロトタイプに最適な選択肢となります。それ以外にも、造形のしやすさ、きめ細やかな表面仕上げ、アクリルなど他の種類のプラスチックも再現できるといったメリットが挙げられます。

生産サポートで利用できるアディティブ・マニュファクチャリング材料

生産サポートは、製造工程を維持するためのツールやインフラで構成されています。3Dプリンタは、研究開発、組み立て、品質管理、安全衛生など、複数の部門や分野にわたって、より効率的なツールの作成と使用を可能にするという重要な役割を担っています。

さらに、3Dプリンタは、代替部品(サロゲートパーツ)を作るための高速で費用対効果の高いソリューションを提供します。代替部品(サロゲートパーツ)とは、新年度の生産ライン変更に伴う、金型設定などの検証において純正部品がまだ入手できない場合に、純正部品の代替品として使用するものです。これにより、最終部品やアセンブリが利用可能になるずっと前の段階であっても金型やツールの検証を行うことができ、従来かかっていた時間を劇的に短縮し、変更が必要な場所を迅速に特定することができます。



部品製造・補修部品向け、アディティブ・マニュファクチャリング材料

3Dプリンタはラピッドプロトタイピングツールとして誕生しましたが、自動車用途での有用性は最終部品の製造にまで及んでいます。そのメリットは、従来あった製造上の制約や生産量によるコスト障壁などが、3Dプリンタを取り入れることで解決できる点です。AMで作られた部品は、サポートツールを必要としないため、製造工程でコストと時間のかかるステップを省くことができます。

自動車生産の他の段階では、通常、用途に応じて最適な材料を選択することになります。ただし、最終用途部品の製造では、そのプロセスは少し異なります。これは、使用する最適な3Dプリンタ技術を決定するうえで部品の合計数量を考慮する必要があり、そのことが利用可能な材料の選択に影響するためです。



車載用3Dプリンタ材料の正しい選択

アディティブ・マニュファクチャリング(積層造形)プロセスに関しては、プリンタ技術が重要ですが、適切な材料の選択も不可欠な要素です。そして、樹脂ベースの3Dプリンタは、さまざまな自動車用アプリケーションに使用することができます。樹脂は多様性に優れており、利用可能な材料の範囲が広いため、さまざまなユースケースに対応できる汎用性を持っています。

さらに樹脂は、レンズカバーの試作からNASCARカップシリーズに出場する全車両の換気スクープの作成といった、さまざまな用途に対応できる特性と美的品質を備えています。

材料ガイドをダウンロードして、上記の各自動車用途に使用できるストラタシスの3Dプリンタ材料をご確認ください。

ダウンロード

3Dプリンタを活用するの最大のメリットは、間違いなく時間短縮です。開発にかかる時間や、金型製作や試用期間を従来の方法の何分の一かに短縮できることは、特に製品発売時に予定通りに市場に投入しようとする場合、大きなメリットとなります。
