DentaJet® XL

Precision at scale.

Empower your high-volume dental lab with the most efficient, lowest labor production solution for highly accurate crown & bridge, multi-material implant cases, and aligner models.

• Up to 67% lower cost per part

• 70% fewer manual touchpoints

• 4X larger resin cartridges

• 30% faster with Super High Speed mode

Navigate quickly to

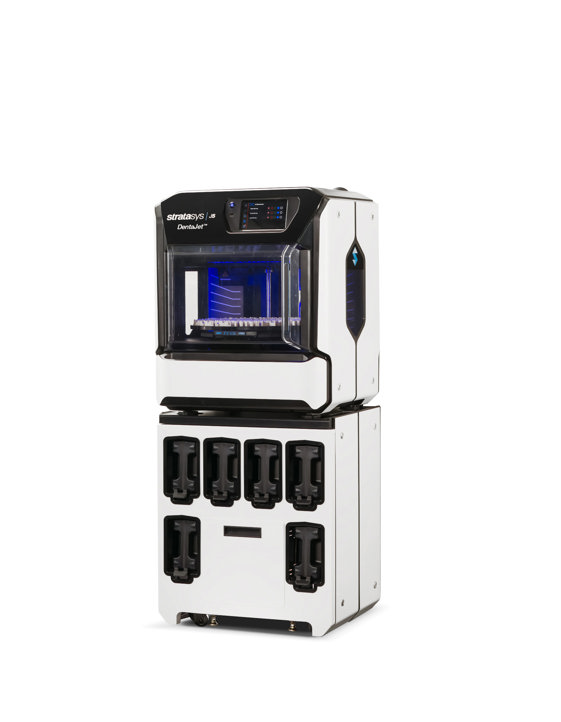

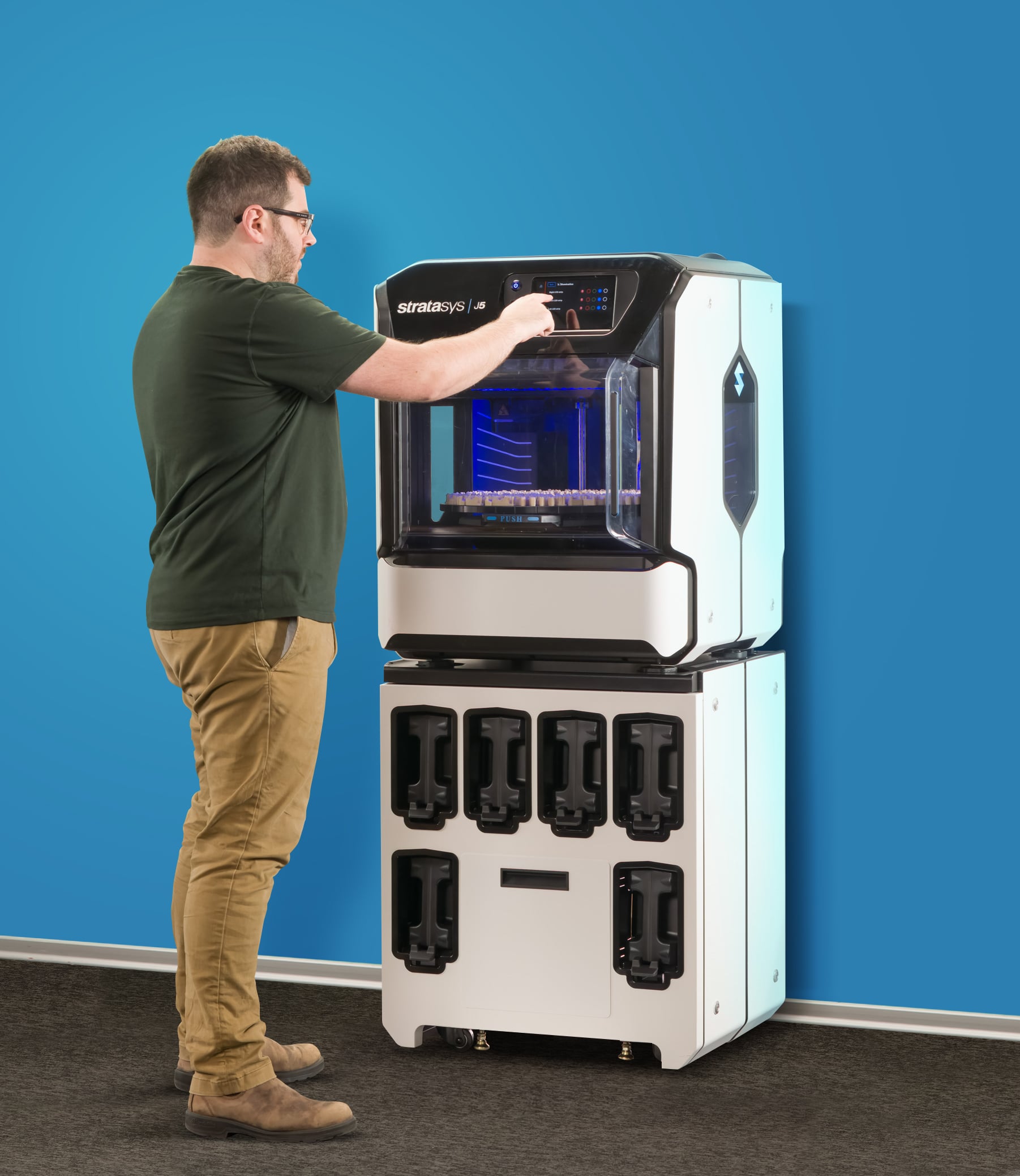

DentaJet™ XL 3D Printer

Benefits

Increase efficiency and reduce labor.

  • check Unattended printing reduces manual touchpoints by 70%
  • check Automated nesting and support increases production efficiency and saves 90% on labor
  • check 30% faster printing with Super High Speed mode
  • check Sealed resin environment and no IPA ensures a safer, cleaner working environment free of toxic odors
Download the Brochure
Features

Unmatched production accuracy – at scale.

  • check 4 kg resin cartridges with hot swap.
  • check Multi-material printing.
  • check Large print tray.
  • check Compact footprint.
  • check Super High Speed print mode for high volume production.
  • check PolyJet accuracy, consistency and precision.
  • check Dental parts cured during print - no post-curing needed.
Download the Brochure
PolyJet Technology

High Efficiency, Low Touch Workflow

Explore the Workflow
step-1-multi-material-1-click-nest-2-min-task-time

STEP 1: 1-CLICK NEST

Automated nesting & support placement

step-2-multi-material-print-and-cure-1-min-task-time

STEP 2: PRINT & CURE

Unattended printing, parts are fully cured upon completion

step-3-multi-material-auto-wash-1-min-task-time

STEP 3: AUTO WASH

Water-based support removal – no IPA, no additional curing

step-1-multi-material-1-click-nest-2-min-task-time
続けて見る
step-2-multi-material-print-and-cure-1-min-task-time
続けて見る
step-3-multi-material-auto-wash-1-min-task-time
続けて見る
Explore the Workflow

Materials

All Dental Materials

MED610™ Bio-Compatible Material

Transparent, biocompatible material tested for skin contact of over 30 days and short-term mucosal membrane contact of up to 24 hours.

Learn More
rpd-model-med620-and-casting-pattern-med610

VeroGlaze™ MED620

Opaque, rigid dental resin featuring high dimensional stability and accuracy. Ideal for printing models, aligner arches, impression trays and try-ins.

Learn More
VeroDent PureWhite DEN847™ ​.jpg

VeroDent™ PureWhite

Bright white color photopolymer. Ideal for printing restorative and orthodontic models.

Learn More
sup711

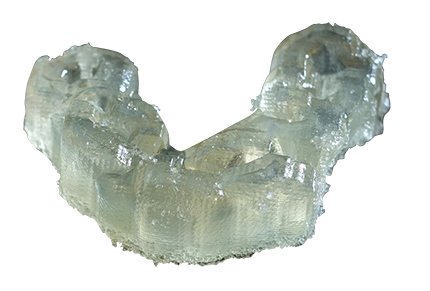

SUP711S™

Proprietary gel-like support material that fully encapsulates each printed part, supporting complex geometries without risk of damage upon removal.

Learn More

Transparent, biocompatible material tested for skin contact of over 30 days and short-term mucosal membrane contact of up to 24 hours.

Learn More
rpd-model-med620-and-casting-pattern-med610

Opaque, rigid dental resin featuring high dimensional stability and accuracy. Ideal for printing models, aligner arches, impression trays and try-ins.

Learn More
VeroDent PureWhite DEN847™ ​.jpg

Bright white color photopolymer. Ideal for printing restorative and orthodontic models.

Learn More
sup711

Proprietary gel-like support material that fully encapsulates each printed part, supporting complex geometries without risk of damage upon removal.

Learn More
All Dental Materials

Focus Applications

Unlock your lab’s growth with accurate, efficient, high volume printing designed for the dental industry.

implant case

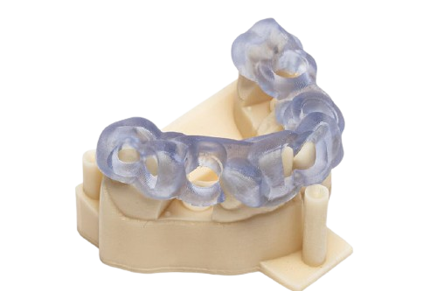

Implant Cases

Your economic solution for consistent, high volume implantology case production including implant models and surgical guides. Print up to 16 implant cases in 6.5 hours.

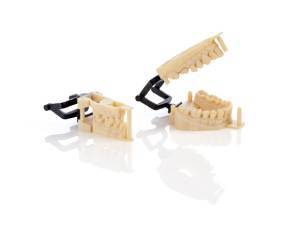

Crown and Bridge

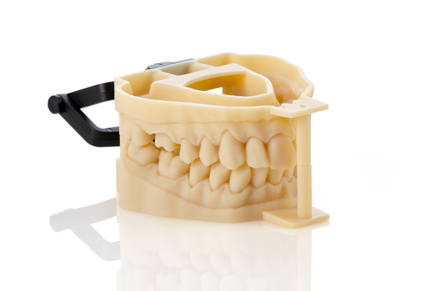

Crown & Bridge

Manufacture large volumes of high-quality, accurate crown and bridge models with fewer remakes. Print up to 102 models in 4.5 hours.

clear aligner model

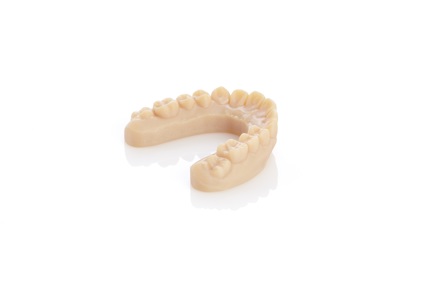

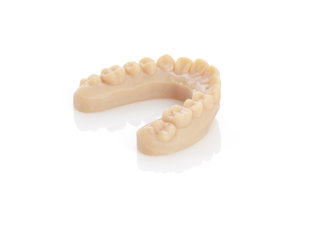

Clear Aligner Models

Increase your lab’s capacity with Super High Speed printing of accurate aligner arches. Print up to 36 arches in ~2 hours.

implant case

Your economic solution for consistent, high volume implantology case production including implant models and surgical guides. Print up to 16 implant cases in 6.5 hours.

続けて見る
Crown and Bridge

Manufacture large volumes of high-quality, accurate crown and bridge models with fewer remakes. Print up to 102 models in 4.5 hours.

続けて見る
clear aligner model

Increase your lab’s capacity with Super High Speed printing of accurate aligner arches. Print up to 36 arches in ~2 hours.

続けて見る

DentaJet® Printer Series

Powered by PolyJet technology. Designed to meet the evolving needs of your growing dental lab.

  • 説明
  • サポート材
  • 造形サイズ
  • 積層ピッチ
  • ネットワーク接続
  • プリンタの寸法と重量
  • 動作条件
  • 電源要件
  • 規制遵守
  • ソフトウェア
  • 造形モード
  • パンフレット
DentaJet® XL

DentaJet® XL

  • 説明 The Stratasys DentaJet XL is a high‑volume PolyJet dental 3D printer designed to deliver precision at scale for crown and bridge, implant cases, and clear aligner model production. With multi material printing, large capacity resin cartridges, and an automated low touch workflow, it enables dental labs to increase throughput, reduce manual labor, and produce fully cured, highly accurate parts in a single unattended print job.
  • サポート材 SUP711S™
  • 造形サイズ Printing area: 1,174cm2
    Print Height: 187mm
  • 積層ピッチ Horizontal build layers down to 18 microns (0.0007 in)
  • ネットワーク接続 LAN - TCP/IP
  • プリンタの寸法と重量 65 x 152 x 66 cm (25.6 x 59.8 x 26 in)
    199 kg (439 lbs.)
  • 動作条件 Temperature 18-25 °C (64 -77 °F); relative humidity 30-70% (non-condensing)
  • 電源要件 100 -240 VAC, 50 - 60 HZ, 10A, 1 phase
  • 規制遵守 CE, cTUVus, FCC, Industry Canada, RCM
    Noise: 67 dB
  • ソフトウェア GrabCAD Print
  • 造形モード High Quality High Speed (HQHS) - 20.625μ
    Super High Speed (SHS) - 61.875μ
    (for aligner arches only)
  • パンフレット Download Brochure
J5 DentaJet™

J5 DentaJet™

  • 説明 The Stratasys J5 DentaJet is a professional, multi‑material PolyJet dental 3D printer designed to help dental labs scale production with high accuracy, realism, and efficiency. With the ability to print up to five biocompatible materials simultaneously on a large-capacity tray, it enables mixed dental applications, full‑color models, and monolithic dentures in a single unattended print job.
  • サポート材 SUP711™ (Water Jet removable), TrueDent Support
  • 造形サイズ Printing area: 1,174cm²
    Max Part Size: Up to 140 x 200 x 190mm (5.51 x 7.87 x 7.48in.)
  • 積層ピッチ Horizontal build layers down to 18 microns (0.0007 in.)
  • ネットワーク接続 LAN – TCP/IP
  • プリンタの寸法と重量 651 x 661 x 1511mm (25.63 x 26.02 x 59.49 in.); 228 kg (503 lbs.)
  • 動作条件 Temperature 18 – 25 °C (64 – 77 °F); relative humidity 30 – 70% (non-condensing)
  • 電源要件 100 – 240 VAC, 50 – 60 HZ, 10A, 1 phase
  • 規制遵守 CE, FCC, EAC
  • ソフトウェア GrabCAD Print
  • 造形モード High Quality Speed (HQS) – 18.75μm
    High Quality High Speed (HQHS) – 20.625μm
  • パンフレット パンフレットをダウンロード
J3 DentaJet™

J3 DentaJet™

  • 説明 The Stratasys J3 DentaJet is a compact, entry‑level PolyJet 3D printer designed for small to mid‑sized dental labs that need high accuracy, multi‑material capability, and efficient production in a small footprint. It enables labs to print mixed trays of dental applications, including implant models, surgical guides, and gingiva masks, in a single job, delivering consistent quality with minimal post‑processing.
  • サポート材 SUP711™ (Waterjet removable)
  • 造形サイズ 140 x 200 x 190mm (5.51 x 7.87 x 7.48 in.)
    Up to 1.174 cm2
  • 積層ピッチ Horizontal build layers down to 18 microns (0.0007 in.)
  • ネットワーク接続 LAN – TCP/IP
  • プリンタの寸法と重量 651 x 661 x 774mm (25.63 x 26.02 x 30.48 in.); 98 kg (216 lbs.)
  • 動作条件 Temperature 18 – 25 °C (64 – 77 °F); relative humidity 30 – 70% (non-condensing)
  • 電源要件 100 – 240 VAC, 50 – 60 HZ, 10A, 1 phase
  • 規制遵守 CE, FCC, EAC
  • ソフトウェア GrabCAD Print
  • 造形モード High Quality Speed (HQS) – 18.75μm
    High Quality High Speed (HQHS) – 20.625μm
    Long Print Mode – 18.75μm (allowing cartridge Hot Swap for selected material)
  • パンフレット パンフレットをダウンロード

Print large trays efficiently and accurately with 98% less repetitive labor and up to 67% lower cost per part

Talk To An Expert
Grab CAD

GrabCAD™ Print

Streamline your digital workflows.

Optimize your lab resources and scale dental production with intuitive interfaces and advanced capabilities.

  • Automated nesting & support generation
  • Fleet management
  • Remote printing
  • Easy to use

Peace of Mind

Stratasys Dental Priority service and support means you never have to worry about production disruptions.

  • Dedicated, expert dental phone support
  • Guaranteed onsite technician within 72 hours
  • Backup printing available
