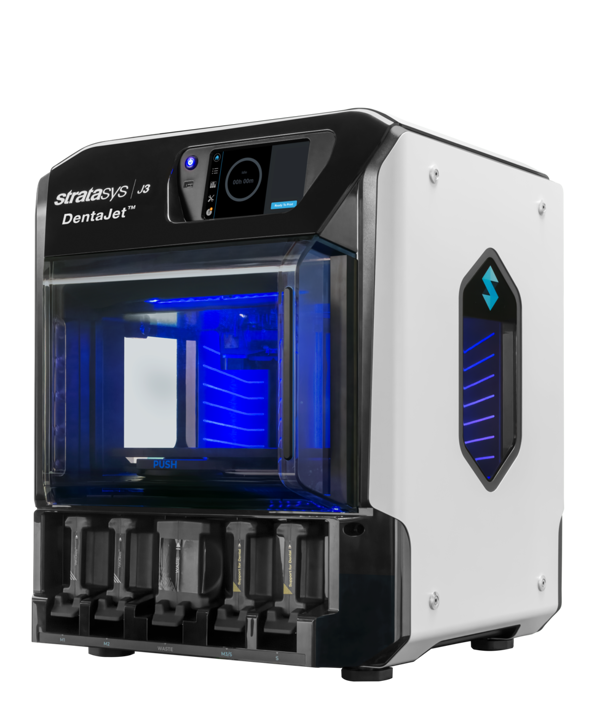

J3 DentaJet 3Dプリンタ

メリット
features-benefits_1058X611

歯科技工所でJ3 DentaJetを使用すると、歯科技工物の混合トレイを、他に類を見ない精度で造形できます。

  • check 生産性を向上し、高い精度と品質を維持しながら、さまざまなケースに迅速かつ効率的に対応します。
  • check 完全に硬化した大量の部品を一晩で製造し、リソースを最適化して、効率を高めることができます。
  • check GrabCAD Printソフトウェアは使いやすく、自動トレイ配置とリモート造形によってデジタルワークフローを効率化できます。
  • check PolyJetプリンタによる薄い積層厚と均一なサポート生成によって、歯科モデルを一貫した精度で造形できます。
カタログをダウンロード
特長
features-benefits_1058X611

精度と品質を備えたコンパクトなプリンタ

  • check 複数材料に対応する機能によって、最大3種類の異なる樹脂の造形を一度に行うことができるため、生体適合性のある材料の混合トレイを製造できます。
  • check GrabCADを使用すると、ストラタシスの複数のプリンタと個々の造形ジョブを1つのスマートなワークフローで管理することで、製造を効率化できます。
  • check PolyJet 3Dプリンタ技術により、精巧で正確な部品を、後工程を最小限に抑えて高解像度で製造できます。
  • check 大量のインプラントモデル、サージカルガイド、歯肉マスクを同じトレイ上で作成できます。
カタログをダウンロード

ストラタシスは、高い精度を維持しながら生産速度で造形を行い、各用途に大きな価値をもたらすことができる、歯科用樹脂の独自のポートフォリオを開発しています。異なる樹脂を同時に造形し、造形サイクル中に完全に硬化させることができます。

ortho - Copy

生体適合性材料VeroGlaze™ MED620™

高い寸法安定性と精度を備えた不透明硬質の歯科用樹脂。モデルのほか、カスタムのインプレッショントレイや試適義歯の造形に最適です。

implant-surgical-guide

クリア生体適合性材料MED610™

高い寸法安定性を備えた、透明硬質で生体適合性のある歯科用樹脂。サージカルガイドや、着脱式の部分床義歯の鋳造パターンの造形に最適です。

dibs_idb_white_background

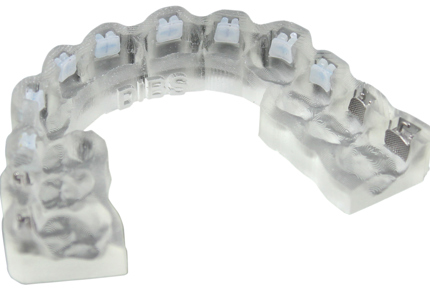

クリア軟質生体適合性材料MED625FLX™

透明軟質で生体適合性のある歯科用樹脂。歯列矯正用の独立したボンディングトレイやインプラント用歯肉マスクの造形に最適です。​

ortho - Copy

高い寸法安定性と精度を備えた不透明硬質の歯科用樹脂。モデルのほか、カスタムのインプレッショントレイや試適義歯の造形に最適です。

implant-surgical-guide

高い寸法安定性を備えた、透明硬質で生体適合性のある歯科用樹脂。サージカルガイドや、着脱式の部分床義歯の鋳造パターンの造形に最適です。

dibs_idb_white_background

透明軟質で生体適合性のある歯科用樹脂。歯列矯正用の独立したボンディングトレイやインプラント用歯肉マスクの造形に最適です。​

High Efficiency, Low Touch Workflow

Explore the Workflow
step-1-multi-material-1-click-nest-2-min-task-time

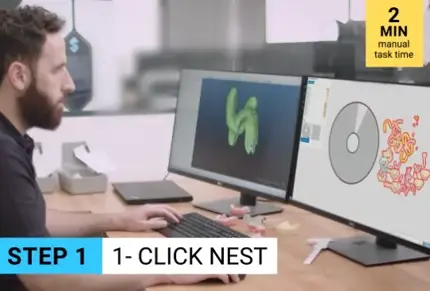

STEP 1: 1-CLICK NEST

Automated nesting & support placement

step-2-multi-material-print-and-cure-1-min-task-time

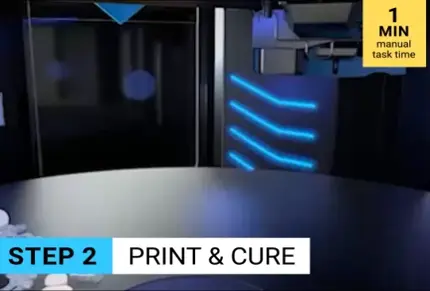

STEP 2: PRINT & CURE

Unattended printing, parts are fully cured upon completion

step-3-multi-material-auto-wash-1-min-task-time

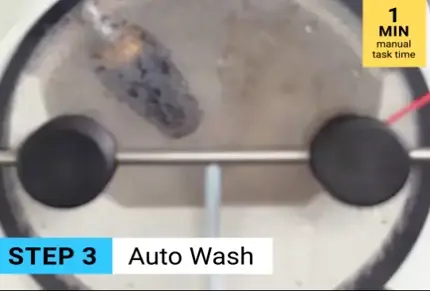

STEP 3: AUTO WASH

Water-based support removal – no IPA, no additional curing

主な用途

インプラントモデル、歯科矯正モデル、着脱式モデルの正確な製造と、関連する用途に使用できます。J3 DentaJetは、幅広いケースに迅速かつ効率的に対応することを可能にします。

J3 Dental Models

歯科用モデル

精密で不透明硬質の生体適合性モデルと金型は、的確な接触面とマージンを備えています。

surgical guides

サージカルガイド

一貫して正確でクリアなサージカルガイドと積み重ね可能なガイドによって、あらゆる種類のインプラントの取り付けに対応します。

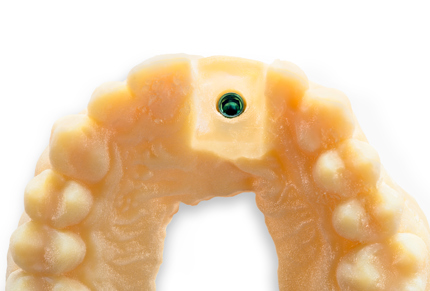

Gingiva mask

歯肉マスク

歯科インプラントモデルに使用される、柔らかい軟質の歯肉マスク。

dibs_idb_white_background

インダイレクトボンディングトレイ

矯正ブラケットの取り付けを一度で行うことができるため、診療時間が短縮されます。

J3 Dental Models

精密で不透明硬質の生体適合性モデルと金型は、的確な接触面とマージンを備えています。

surgical guides

一貫して正確でクリアなサージカルガイドと積み重ね可能なガイドによって、あらゆる種類のインプラントの取り付けに対応します。

Gingiva mask

歯科インプラントモデルに使用される、柔らかい軟質の歯肉マスク。

dibs_idb_white_background

矯正ブラケットの取り付けを一度で行うことができるため、診療時間が短縮されます。

プリンタの比較

DentaJetシリーズには、あらゆる歯科技工所の進化する製造ニーズに対応するように設計された、プロフェッショナルグレードの複合材料3Dプリンタが含まれています。

  • 説明
  • サポート資料
  • 造形サイズ
  • 積層ピッチ
  • ネットワーク接続
  • プリンタの寸法と重量
  • 動作条件
  • 電源要件
  • 規制遵守
  • ソフトウェア
  • 造形モード
  • パンフレット

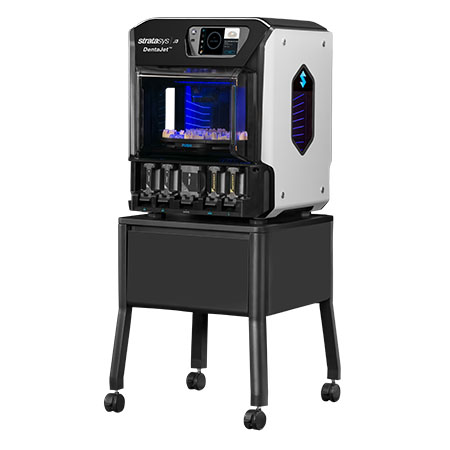

  • 説明 The Stratasys J3 DentaJet is a compact, entry‑level PolyJet 3D printer designed for small to mid‑sized dental labs that need high accuracy, multi‑material capability, and efficient production in a small footprint. It enables labs to print mixed trays of dental applications, including implant models, surgical guides, and gingiva masks, in a single job, delivering consistent quality with minimal post‑processing.
  • サポート資料 SUP711™ (Waterjet removable)
  • 造形サイズ 140 x 200 x 190mm (5.51 x 7.87 x 7.48 in.)
    Up to 1.174 cm2
  • 積層ピッチ Horizontal build layers down to 18 microns (0.0007 in.)
  • ネットワーク接続 LAN – TCP/IP
  • プリンタの寸法と重量 651 x 661 x 774mm (25.63 x 26.02 x 30.48 in.); 98 kg (216 lbs.)
  • 動作条件 Temperature 18 – 25 °C (64 – 77 °F); relative humidity 30 – 70% (non-condensing)
  • 電源要件 100 – 240 VAC, 50 – 60 HZ, 10A, 1 phase
  • 規制遵守 CE, FCC, EAC
  • ソフトウェア GrabCAD Print
  • 造形モード High Quality Speed (HQS) – 18.75μm
    High Quality High Speed (HQHS) – 20.625μm
    Long Print Mode – 18.75μm (allowing cartridge Hot Swap for selected material)
  • パンフレット パンフレットをダウンロード
  • 説明 The Stratasys DentaJet XL is a high‑volume PolyJet dental 3D printer designed to deliver precision at scale for crown and bridge, implant cases, and clear aligner model production. With multi material printing, large capacity resin cartridges, and an automated low touch workflow, it enables dental labs to increase throughput, reduce manual labor, and produce fully cured, highly accurate parts in a single unattended print job.
  • サポート資料 SUP711S™
  • 造形サイズ Printing area: 1,174cm2
    Print Height: 187mm
  • 積層ピッチ Horizontal build layers down to 18 microns (0.0007 in)
  • ネットワーク接続 LAN - TCP/IP
  • プリンタの寸法と重量 65 x 152 x 66 cm (25.6 x 59.8 x 26 in)
    199 kg (439 lbs.)
  • 動作条件 Temperature 18-25 °C (64 -77 °F); relative humidity 30-70% (non-condensing)
  • 電源要件 100 -240 VAC, 50 - 60 HZ, 10A, 1 phase
  • 規制遵守 CE, cTUVus, FCC, Industry Canada, RCM
    Noise: 67 dB
  • ソフトウェア GrabCAD Print
  • 造形モード High Quality High Speed (HQHS) - 20.625μ
    Super High Speed (SHS) - 61.875μ
    (for aligner arches only)
  • パンフレット Download Brochure
  • 説明 The Stratasys J5 DentaJet is a professional, multi‑material PolyJet dental 3D printer designed to help dental labs scale production with high accuracy, realism, and efficiency. With the ability to print up to five biocompatible materials simultaneously on a large-capacity tray, it enables mixed dental applications, full‑color models, and monolithic dentures in a single unattended print job.
  • サポート資料 SUP711™ (Water Jet removable), TrueDent Support
  • 造形サイズ Printing area: 1,174cm²
    Max Part Size: Up to 140 x 200 x 190mm (5.51 x 7.87 x 7.48in.)
  • 積層ピッチ Horizontal build layers down to 18 microns (0.0007 in.)
  • ネットワーク接続 LAN – TCP/IP
  • プリンタの寸法と重量 651 x 661 x 1511mm (25.63 x 26.02 x 59.49 in.); 228 kg (503 lbs.)
  • 動作条件 Temperature 18 – 25 °C (64 – 77 °F); relative humidity 30 – 70% (non-condensing)
  • 電源要件 100 – 240 VAC, 50 – 60 HZ, 10A, 1 phase
  • 規制遵守 CE, FCC, EAC
  • ソフトウェア GrabCAD Print
  • 造形モード High Quality Speed (HQS) – 18.75μm
    High Quality High Speed (HQHS) – 20.625μm
  • パンフレット パンフレットをダウンロード

ストラタシスの歯科用プリンタを使用して、歯科技工所の生産力を最適化できます。

エキスパートに相談する

Customer Case studies

All Customer Success Stories

Learn how the J3 DentaJet, our compact printer for small to medium-sized labs, benefits dental laboratories and patients around the world.

dany-karam-and-bodie

Advanced Dental Technologies Increases Production Capacity 7X

ADT transformed its dental workflows using the J3 DentaJet, reducing labor demands, cutting costs & increasing production capacity sevenfold. Read more

続けて見る
Glidewell priview page

Glidewell reaches new levels of productivity with Stratasys J3 DentaJet

The world’s largest manufacturer of custom dental services & implant manufacturer, reaches new levels of productivity & quality using J3 DentaJet. Read now

続けて見る
Digitizes Implantation Process

Oxy Implant Digitizes Implantation Process with DentaJet 3D Printing Solutions

Dental Implant Specialist leverages Stratasys’ PolyJet technology for a multi-material approach in the creation of surgical guides

続けて見る
dany-karam-and-bodie

ADT transformed its dental workflows using the J3 DentaJet, reducing labor demands, cutting costs & increasing production capacity sevenfold. Read more

Glidewell priview page

The world’s largest manufacturer of custom dental services & implant manufacturer, reaches new levels of productivity & quality using J3 DentaJet. Read now

Digitizes Implantation Process

Dental Implant Specialist leverages Stratasys’ PolyJet technology for a multi-material approach in the creation of surgical guides

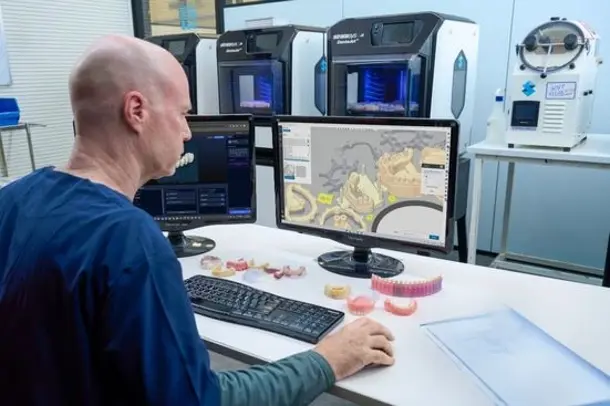

grabcad_implantology

GrabCad Print - 歯科用モデルの製造を簡素化

ストラタシスのすべての歯科用プリンタに対応しているGrabCAD Printは、自動サポート生成、フリート管理、CADファイルのネイティブサポート、リアルタイムのプリンタ監視などによって、造形プロセスを効率化します。
