プロトタイプの短期製作
これまでにない短期間で優れたアイデアからヒット商品を生み出します。モデルのコンセプト化から機能的なプロトタイプまで、よりよいモデル製作ができます。実際の試験とフィードバックを基にしています。
詳細を見るOVERVIEW
Multi-Material Large Parts and Mixed Trays
The Objet500 Connex1 3D Printer lets you rethink what’s possible on tight development budgets and timelines. This 3D printer can combine two or three base resins in a single print job to simulate overmolding, generate multi-material tools and models, or produce trays of assorted parts – all for immediate use without assembly.
Multi-material technology gives you the versatility to create models from 17 available base resins. Simulate rubber, polypropylene, standard manufacturing plastics and more.
Ultra-fine build layers help you create fine details and smooth surfaces. Print parts with precise threading or crisp tracking codes directly from the CAD file. PolyJet technology gives you thin walls and outstanding accuracy, to meet the most exacting standards of your team and your clients.
Efficient workflow ensures you spend less time attending to printers and processing parts. PolyJet models are ready without post-curing. Hands-free support removal and material hot-swapping (replacing an empty cartridge while a second cartridge of the same material is in use) further minimize demands on your time and effort.
Soluble support capability adds more time savings with hands-free support material removal, increasing productivity. Choose between soluble support and WaterJet-removable support.
Get a Quote
MATERIALS
Versatile Material Options
THE OBJET500 CONNEX1 3D PRINTER OFFERS 17 BASE MATERIALS, INCLUDING:
Transparent materials with great dimensional stability and surface smoothness
Rubber-like materials (Tango family and Agilus30) suitable for non-slip and non-scratch surfaces or simulated overmolding
Rigid Opaque materials (Vero family) in white, gray, blue and black
Simulated polypropylene materials with toughness and durability to create living hinges, flexible closures and snap-fit prototypes
ADDITIONAL MODEL MATERIALS INCLUDE:
SUPPORT MATERIALS INCLUDE:
- SUP706 (soluble)
- SUP705 (WaterJet removable)
仕様
仕様
プリンタの寸法と重量
1400 x 1260 x 1100 mm (55.1 x 49.6 x 43.4 in.); 430 kg (948 lbs.)
マテリアルキャビネット:330 x 1170 x 640 mm (13 x 46.1 x 26.2 in.); 76 kg (168 lbs.)
造形サイズ
490 x 390 x 200 mm (19.3 x 15.4 x 7.9 in.)
積層ピッチ
造形ピッチ 水平方向 最小 16μm (.0006 in.)
精度
50 mm以下の機能では、20～85ミクロン; フルモデルサイズでは、200ミクロンまで
解像度
X方向: 600 dpi; Y方向: 600 dpi; Z方向: 1600 dpi
Get the Objet500 Connex1 Spec Sheet ソフトウェア
ソフトウェア

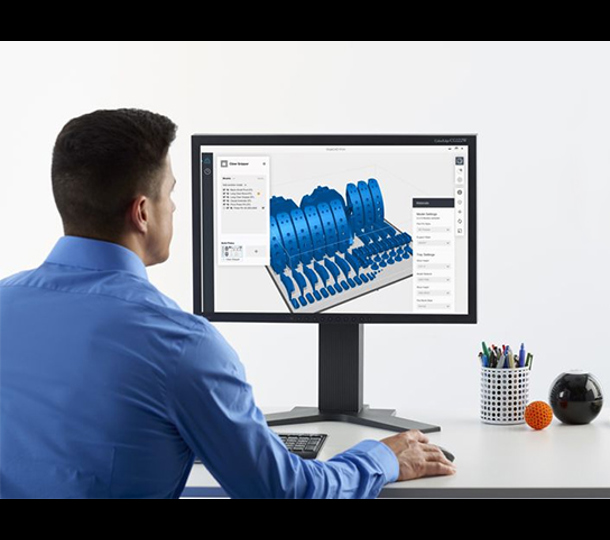

Objet Studio
Objet500 Connex1 3Dプリンターには、Objet Studioソフトウェアが付きます。Objet Studio は、マテリアル選択、造形最適化、プリントキュー管理を容易にする直感的なインターフェースを備えています。
